avoid triangulation in drawings?

1. T by theoryshaw on 14 Dec 2023, edited 14 Dec 2023 #

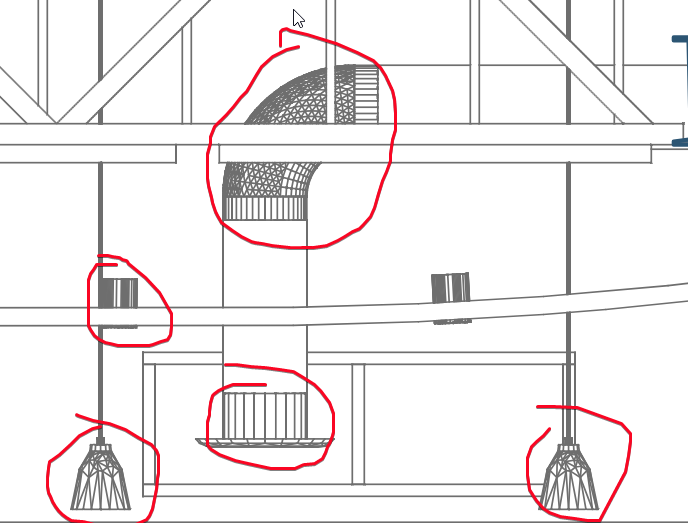

   Does anyone know how to avoid creating an over abundance of faceting and triangulation, like this, in drawings?

   file: https://hub.openingdesign.com/OpeningDesign/Restaurant_Sun_Prairie/src/commit/4d2b3550f29d567478c522dbe61ec0fa0d73dc06/Models/BlenderBIM/Restaurant_Sun_Prairie.ifc

   drawing name: SECTION - NORTH - LINE



2. A by Ace on 14 Dec 2023 #

   At the moment no, I've had that issue with topography aswell,

   it would be great if it could just display the outline/silhouette of these tessellated geometries
