Aligning 2 IFC projects

1. G by Guileoni on 21 Mar 2024, edited 22 Mar 2024 # +2 votes

   Hello All!

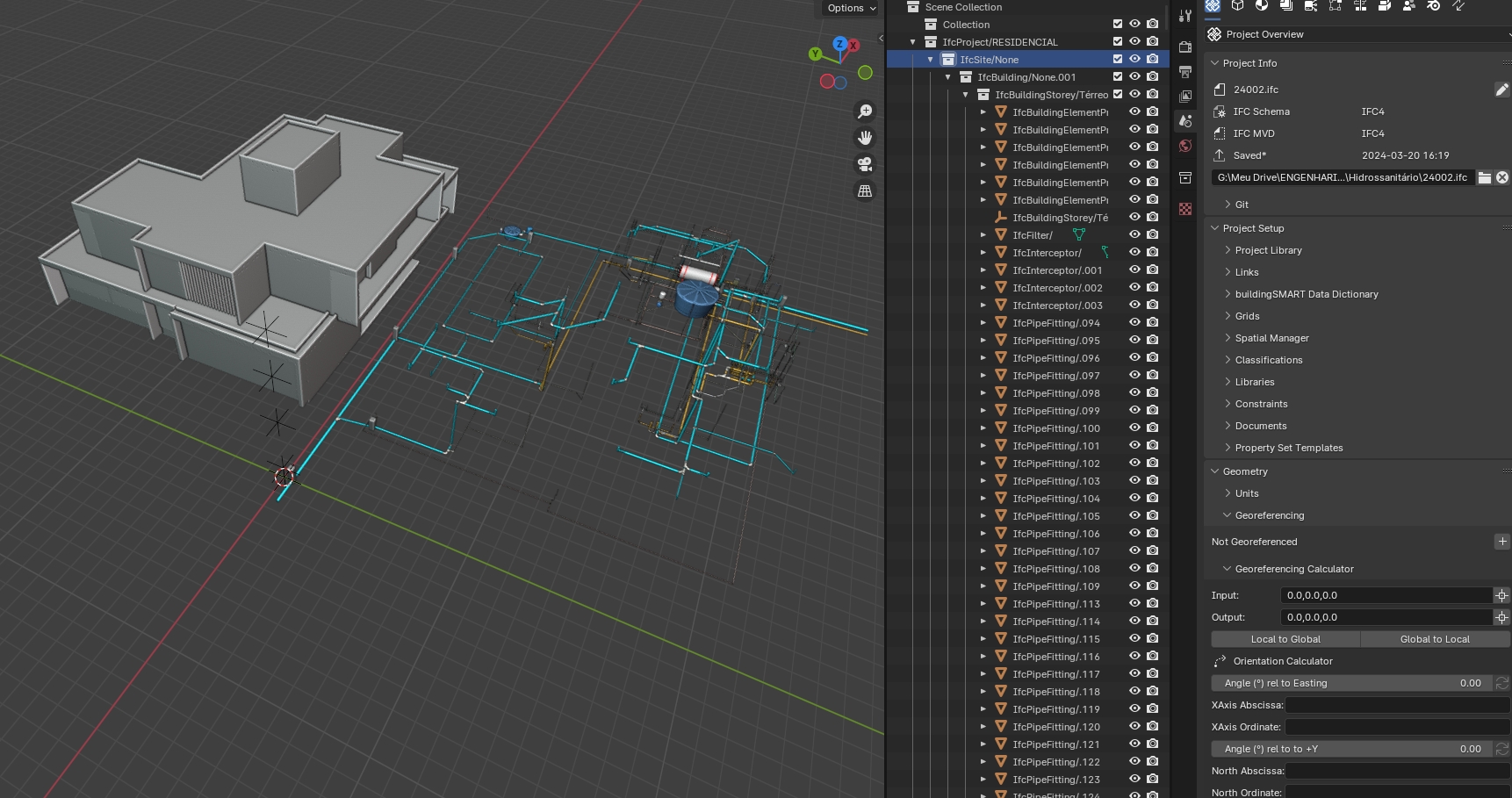

   I've been working on modeling this house to analyze the MEP designs. I began modeling based on the 2D PDF architectural projects. However, when I received the sanitary design, it didn't match. I've searched extensively but haven't found a solution.

   Question 1: How can I align these two IFC files?

   Question 2: How can I work with one project IFC 4.0 and other IFC 2.3 files?



   Bbim v0.0.240308

   Thanks!!

2. A by Andrej730 on 22 Mar 2024 # +1 votes

   @Guileoni said:

   Question 2: How can I work with one project IFC 4.0 and other IFC 2.3 files?

   Upgrade them to IFC4?

3. C by camontellano on 22 Mar 2024 # +3 votes

   If you know how much you have to move them....I would suggest to use the IFCPatch Recipe:



   or



   I've seen a new one I never tested before but may help:



   My first shot would be to upgrade the IFC 2x3 to 4, and use the first recipe.

4. C by c4rlosdias on 22 Mar 2024 #

   IfcPatch->OffSetObjectPlacements
